SP50 Round Service Column
50mm round aluminium service column for bringing power and data from the ceiling to the desk. Choose single division, or two divisions to run power and data separately. Available in 3m, 4m and 6m lengths in natural anodised, pearl white or satin black.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.

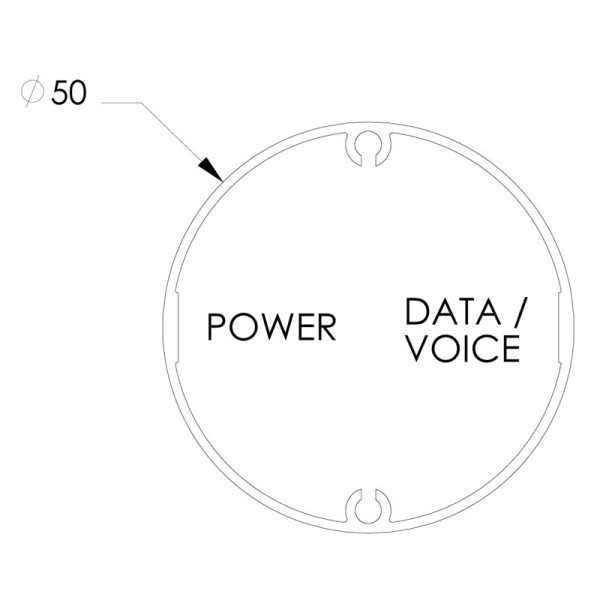

The SP50 is the all-rounder of the Cableduct round column range. At 50mm in diameter it has the capacity for a proper workstation feed while still keeping a slim, tidy profile from ceiling to desk.

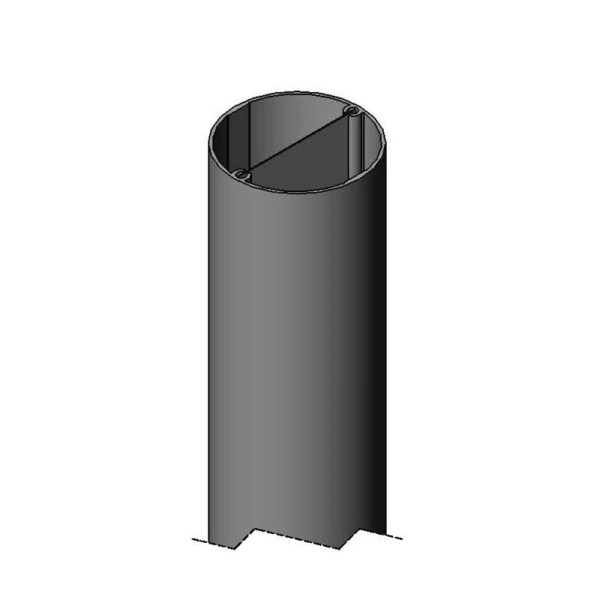

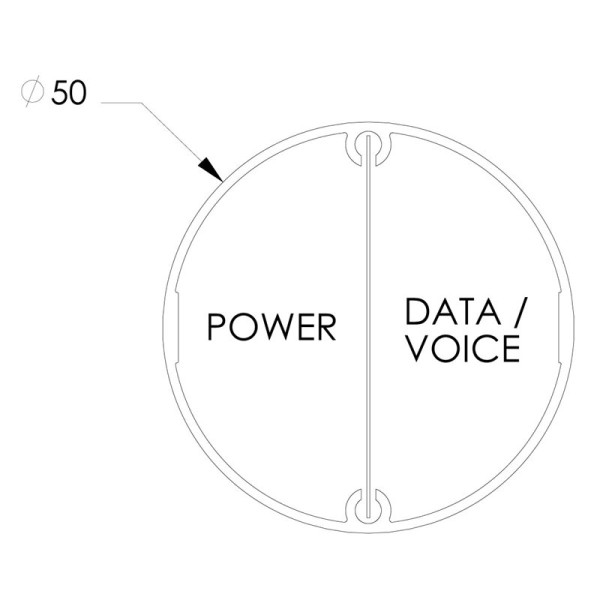

Choose the two-division version to keep power and data/voice in their own channels inside the column, the neat way to meet segregation requirements on a fit-out. The single-division version suits power-only or mixed runs.
Colour reference
| Natural anodised | Pearl white | Satin black |
Colours are a guide only and will vary with screen settings. Ask us for a finish sample if colour matching matters on your project.
Available options
| Colour | Part number | Finish | Configuration | Length | |
|---|---|---|---|---|---|
|
|
SP501D3MAN | Natural anodised | Single division | 3m (3,000mm) | |
|
|
SP501D4MAN | Natural anodised | Single division | 4m (4,000mm) | |
|
|
SP501D6MAN | Natural anodised | Single division | 6m (6,000mm) | |
|
|
SP502D3MAN | Natural anodised | Two division (power and data) | 3m (3,000mm) | |
|
|
SP502D4MAN | Natural anodised | Two division (power and data) | 4m (4,000mm) | |
|
|
SP502D6MAN | Natural anodised | Two division (power and data) | 6m (6,000mm) | |
|
|
SP501D3MPW | Pearl white | Single division | 3m (3,000mm) | |
|
|
SP501D4MPW | Pearl white | Single division | 4m (4,000mm) | |
|
|
SP501D6MPW | Pearl white | Single division | 6m (6,000mm) | |
|
|
SP502D3MPW | Pearl white | Two division (power and data) | 3m (3,000mm) | |
|
|
SP502D4MPW | Pearl white | Two division (power and data) | 4m (4,000mm) | |
|
|
SP502D6MPW | Pearl white | Two division (power and data) | 6m (6,000mm) | |
|
|
SP501D3MBLK | Satin black | Single division | 3m (3,000mm) | |
|
|
SP501D4MBLK | Satin black | Single division | 4m (4,000mm) | |
|
|
SP501D6MBLK | Satin black | Single division | 6m (6,000mm) | |
|
|
SP502D3MBLK | Satin black | Two division (power and data) | 3m (3,000mm) | |
|
|
SP502D4MBLK | Satin black | Two division (power and data) | 4m (4,000mm) | |
|
|
SP502D6MBLK | Satin black | Two division (power and data) | 6m (6,000mm) |
Specifications
| Profile | 50mm round aluminium |
| Configuration | Single division, or two division for separate power and data/voice |
| Lengths | 3m, 4m and 6m |
| Finishes | Natural anodised, pearl white, satin black |

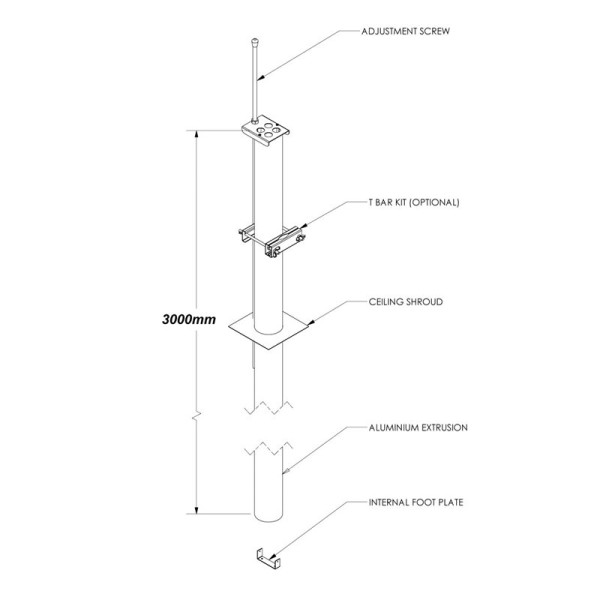

| Supplied with | Ceiling shroud, adjustment screw, internal foot plate and fixing hardware |
| Options | T-bar kit for suspended ceiling grids |
Tell us your floor-to-ceiling height and the outlets you need, and we will confirm the right column and length for your project. Email sales@cableduct.com.au or call 1300 302 249.
