SP8080 Square Service Column
80 x 80mm square aluminium service column for high-capacity power and data from the ceiling to the desk. Single or two-division, in 3m, 4m and 6m lengths, finished in natural anodised, pearl white or satin black.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.

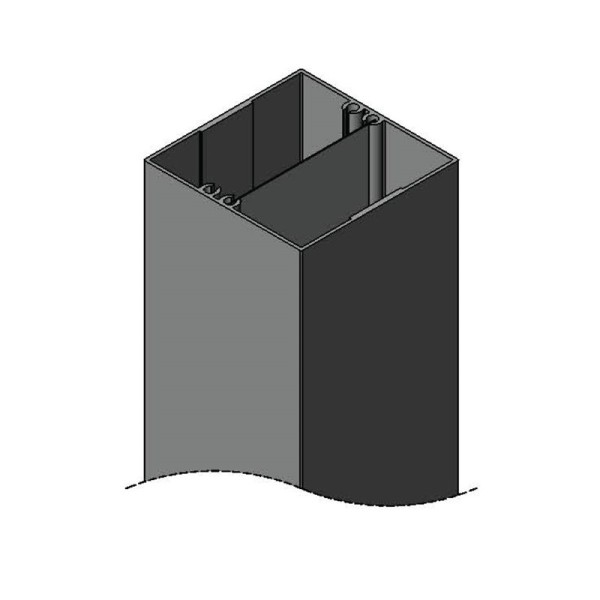

The SP8080 is a square 80 x 80mm aluminium column built for workstation clusters that need real cable capacity. Its generous internal space takes multiple power circuits alongside data and voice, and its square profile gives a solid, architectural look in open-plan offices, training rooms and labs.

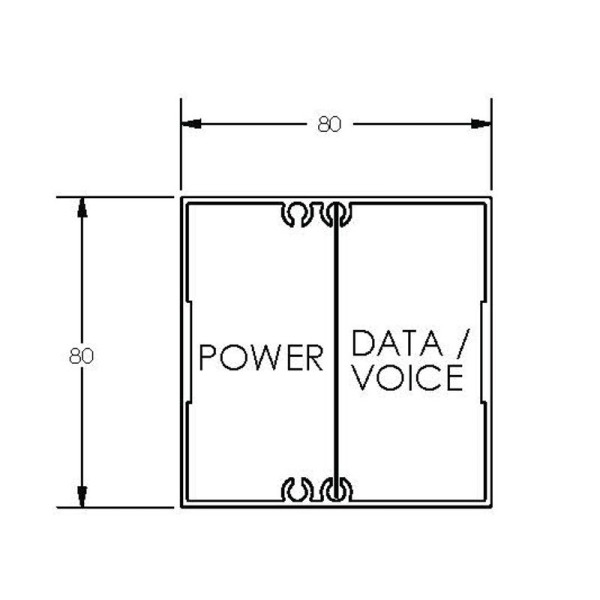

Choose two divisions to keep power and data/voice apart from ceiling to desk, or a single division for power-only runs.
Colour reference
| Natural anodised | Pearl white | Satin black |
Colours are a guide only and will vary with screen settings. Ask us for a finish sample if colour matching matters on your project.
Available options
| Colour | Part number | Finish | Configuration | Length | |
|---|---|---|---|---|---|
|
|
SP80801D3MAN | Natural anodised | Single division | 3m (3,000mm) | |
|
|
SP80801D4MAN | Natural anodised | Single division | 4m (4,000mm) | |
|
|
SP80801D6MAN | Natural anodised | Single division | 6m (6,000mm) | |
|
|
SP80802D3MAN | Natural anodised | Two division (power and data) | 3m (3,000mm) | |
|
|
SP80802D4MAN | Natural anodised | Two division (power and data) | 4m (4,000mm) | |
|
|
SP80802D6MAN | Natural anodised | Two division (power and data) | 6m (6,000mm) | |
|
|
SP80801D3MPW | Pearl white | Single division | 3m (3,000mm) | |
|
|
SP80801D4MPW | Pearl white | Single division | 4m (4,000mm) | |
|
|
SP80801D6MAPW | Pearl white | Single division | 6m (6,000mm) | |
|
|
SP80802D3MPW | Pearl white | Two division (power and data) | 3m (3,000mm) | |
|
|
SP80802D4MPW | Pearl white | Two division (power and data) | 4m (4,000mm) | |
|
|
SP80802D6MPW | Pearl white | Two division (power and data) | 6m (6,000mm) | |
|
|
SP80801D3MSB | Satin black | Single division | 3m (3,000mm) | |
|
|
SP80801D4MSB | Satin black | Single division | 4m (4,000mm) | |
|
|
SP80801D6MASB | Satin black | Single division | 6m (6,000mm) | |
|
|
SP80802D3MSB | Satin black | Two division (power and data) | 3m (3,000mm) | |
|
|
SP80802D4MSB | Satin black | Two division (power and data) | 4m (4,000mm) | |
|
|
SP80802D6MSB | Satin black | Two division (power and data) | 6m (6,000mm) |
Specifications

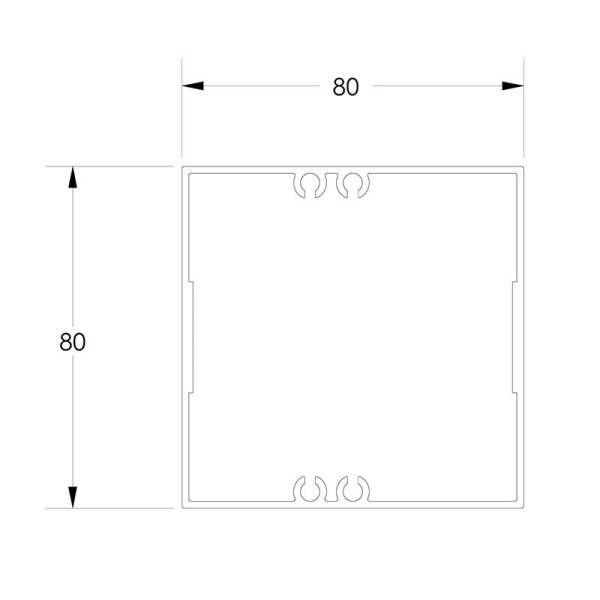

| Profile | 80 x 80mm square aluminium |
| Configuration | Single division, or two division for separate power and data/voice |
| Lengths | 3m, 4m and 6m |
| Finishes | Natural anodised, pearl white, satin black |

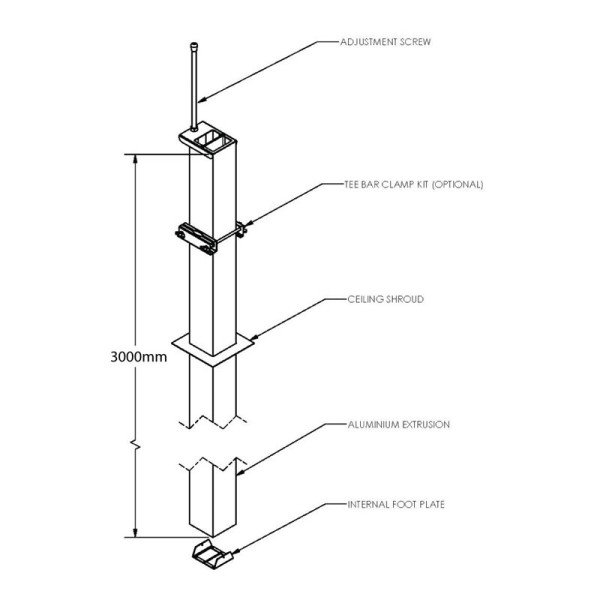

| Supplied with | Ceiling shroud, adjustment screw, internal foot plate and fixing hardware |
| Options | T-bar clamp kit for suspended ceiling grids |
Tell us your floor-to-ceiling height and the outlets you need, and we will confirm the right column and length for your project. Email sales@cableduct.com.au or call 1300 302 249.
