SP100100 Square Service Column
100 x 100mm square aluminium service column, the largest in the Cableduct range. Available with one, two or four divisions, in 3m, 4m and 6m lengths, finished in natural anodised, pearl white or satin black.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.

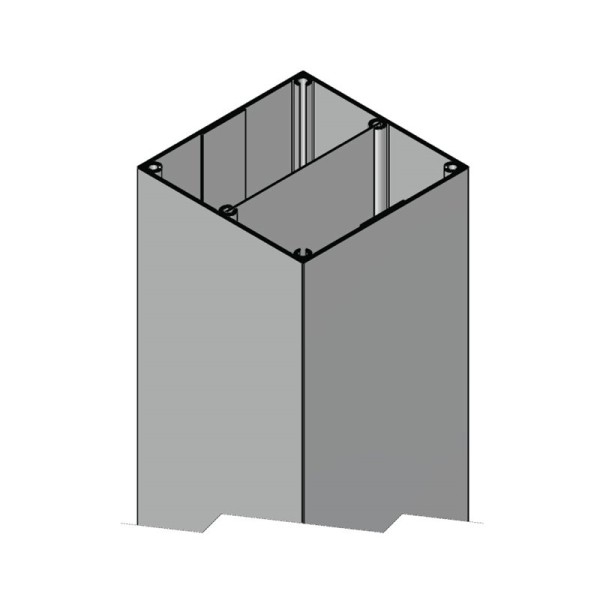

The SP100100 is the flagship of the Cableduct column range: a 100 x 100mm square aluminium column with the capacity to feed large workstation pods, benching runs, laboratories and trading floors from a single ceiling drop.
It is the only column in the range offered with four divisions, so power, data, voice and a further service such as AV or security can each run in their own channel. Two-division and single-division versions are also available.
Colour reference
| Natural anodised | Pearl white | Satin black |
Colours are a guide only and will vary with screen settings. Ask us for a finish sample if colour matching matters on your project.
Available options
| Colour | Part number | Finish | Configuration | Length | |
|---|---|---|---|---|---|
|
|
SP1001001D3MAN | Natural anodised | Single division | 3m (3,000mm) | |
|
|
SP1001001D4MAN | Natural anodised | Single division | 4m (4,000mm) | |
|
|
SP1001001D6MAN | Natural anodised | Single division | 6m (6,000mm) | |
|
|
SP1001002D3MAN | Natural anodised | Two division (power and data) | 3m (3,000mm) | |
|
|
SP1001002D4MAN | Natural anodised | Two division (power and data) | 4m (4,000mm) | |
|
|
SP1001002D6MAN | Natural anodised | Two division (power and data) | 6m (6,000mm) | |
|
|
SP1001004D3MAN | Natural anodised | Four division | 3m (3,000mm) | |
|
|
SP1001004D4MAN | Natural anodised | Four division | 4m (4,000mm) | |
|
|
SP1001004D6MAN | Natural anodised | Four division | 6m (6,000mm) | |
|
|
SP1001001D3MPW | Pearl white | Single division | 3m (3,000mm) | |
|
|
SP1001001D4MPW | Pearl white | Single division | 4m (4,000mm) | |
|
|
SP1001001D6MAPW | Pearl white | Single division | 6m (6,000mm) | |
|
|
SP1001002D3MPW | Pearl white | Two division (power and data) | 3m (3,000mm) | |
|
|
SP1001002D4MPW | Pearl white | Two division (power and data) | 4m (4,000mm) | |
|
|
SP1001002D6MPW | Pearl white | Two division (power and data) | 6m (6,000mm) | |
|
|
SP1001004D3MPW | Pearl white | Four division | 3m (3,000mm) | |
|
|
SP1001004D4MPW | Pearl white | Four division | 4m (4,000mm) | |
|
|
SP1001004D6MPW | Pearl white | Four division | 6m (6,000mm) | |
|
|
SP1001001D3MSB | Satin black | Single division | 3m (3,000mm) | |
|
|
SP1001001D4MSB | Satin black | Single division | 4m (4,000mm) | |
|
|
SP1001001D6MASB | Satin black | Single division | 6m (6,000mm) | |
|
|
SP1001002D3MSB | Satin black | Two division (power and data) | 3m (3,000mm) | |
|
|
SP1001002D4MSB | Satin black | Two division (power and data) | 4m (4,000mm) | |
|
|
SP1001002D6MSB | Satin black | Two division (power and data) | 6m (6,000mm) | |
|
|
SP1001004D3MSB | Satin black | Four division | 3m (3,000mm) | |
|
|
SP1001004D4MSB | Satin black | Four division | 4m (4,000mm) | |
|
|
SP1001004D6MSB | Satin black | Four division | 6m (6,000mm) |
Specifications

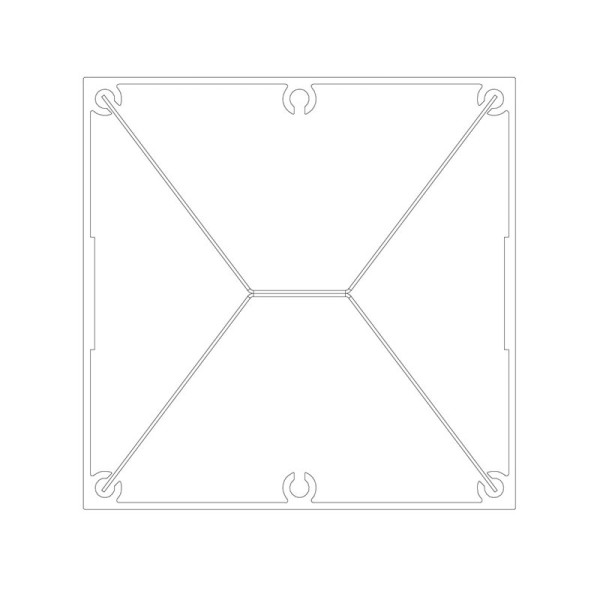

| Profile | 100 x 100mm square aluminium |
| Configuration | Single, two or four division |
| Lengths | 3m, 4m and 6m |
| Finishes | Natural anodised, pearl white, satin black |

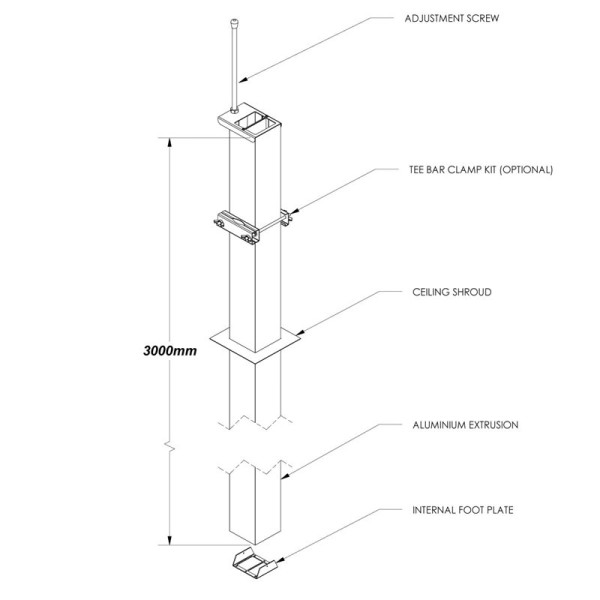

| Supplied with | Ceiling shroud, adjustment screw, internal foot plate and fixing hardware |
| Options | T-bar clamp kit for suspended ceiling grids |
Tell us your floor-to-ceiling height and the outlets you need, and we will confirm the right column and length for your project. Email sales@cableduct.com.au or call 1300 302 249.
