SC8550 Rectangular Service Column
85 x 50mm two-channel aluminium service column with a removable lid, so outlets can be fitted into the column face. Available in 3m, 4m and 6m lengths, finished in natural anodised, pearl white, satin black or black ripple.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.

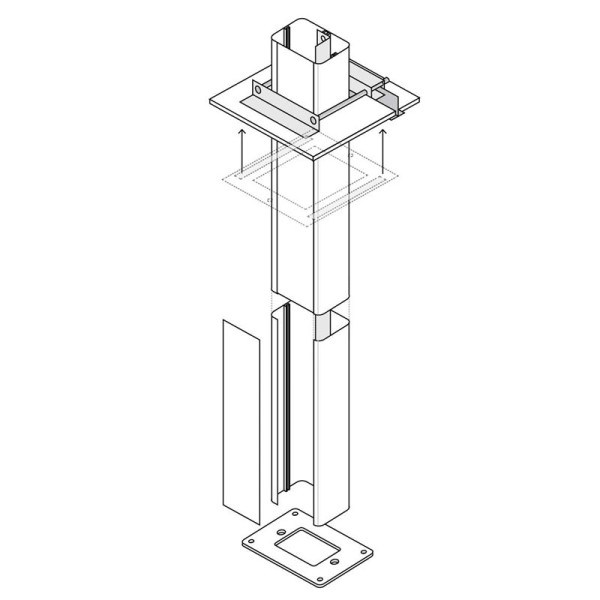

The SC8550 is the Cableduct column for projects where the outlets live on the column itself. Its 85 x 50mm aluminium body has a removable lid for easy cabling and changes after installation, and an outlet mounting bracket so power and data outlets can be fitted straight into the column face at the desk.

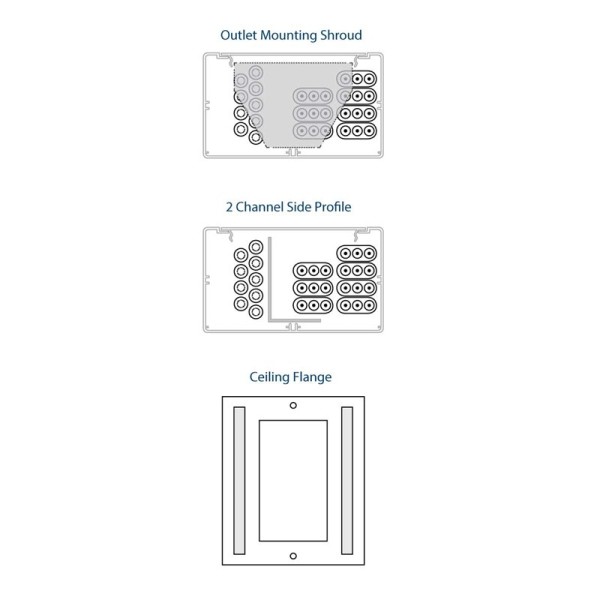

Two internal channels keep power and data/voice separated from the ceiling flange down, and it is the only column in the range offered in black ripple as well as the standard finishes.
Colour reference
| Natural anodised | Pearl white | Satin black |
|
Black ripple (textured) |
Colours are a guide only and will vary with screen settings. Ask us for a finish sample if colour matching matters on your project.
Available options
| Colour | Part number | Finish | Length | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SC85502D3MAN | Natural anodised | 3m (3,000mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
SC85502D4MAN | Natural anodised | 4m (4,000mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
SC85502D6MAN | Natural anodised | 6m (6,000mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
SC85502D3MW | Pearl white | 3m (3,000mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
SC85502D4MW | Pearl white | 4m (4,000mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
SC85502D6MW | Pearl white | 6m (6,000mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
SC85502D3MBS | Satin black | 3m (3,000mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
SC85502D4MBS | Satin black | 4m (4,000mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
SC85502D6MBS | Satin black | 6m (6,000mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
SC85502D3MBR | Black ripple | 3m (3,000mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
SC85502D4MBR | Black ripple | 4m (4,000mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
SC85502D6MBR | Black ripple | 6m (6,000mm) |
Specifications
| Profile | 85 x 50mm rectangular aluminium with removable lid |
| Configuration | Two channel, for separate power and data/voice |
| Outlets | Outlet mounting bracket for fitting outlets into the column face |
| Lengths | 3m, 4m and 6m |
| Finishes | Natural anodised, pearl white, satin black, black ripple |
| Supplied with | Ceiling flange and fixing hardware |
Tell us your floor-to-ceiling height and the outlets you want fitted, and we will confirm the right column and configuration for your project. Email sales@cableduct.com.au or call 1300 302 249.
