Service Pedestals

Cableduct service pedestals put outlets exactly where people work, without a power board in sight. Each pedestal is an aluminium post divided into two channels for its full length, so power and data run separately from the base plate to the outlets, and all are suitable for Category 6 and 6A data cabling.

The flush base plate fixes to the desktop, and on the SP72 can be inverted to fix to a ceiling or wall. Complete pedestals are supplied ready to install, individual parts can be ordered separately, and we can customise heights and configurations to suit your project.

Colour reference

Colours are a guide only and will vary with screen settings.

At a glance

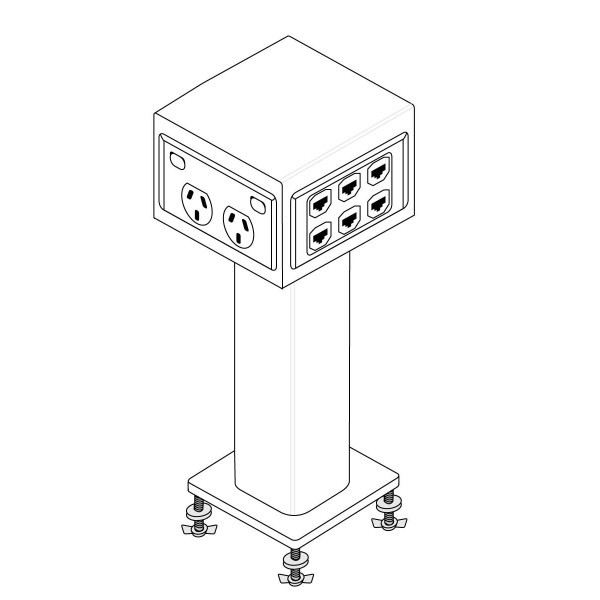

PP70 - SP72 service pedestal with outlet box

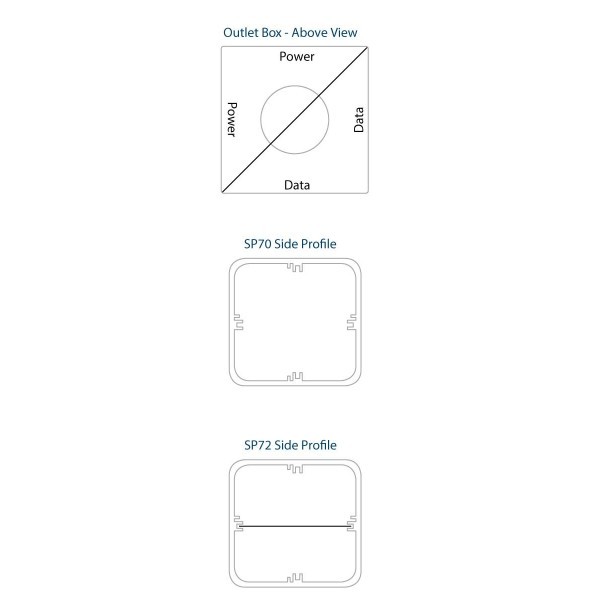

A 70 x 70mm square pedestal topped with a 120 x 120 x 80mm outlet box that takes four Clipsal 2000 series style power, data or AV outlets. The box is divided into power and data sections, matching the 70mm channel divider that runs the length of the pedestal. Outlets 4 x Clipsal 2000 series style power, data or AV Outlet box 120 x 120 x 80mm, divided for power and data Body 70 x 70mm square aluminium, radiused corners Channels 2, with 70mm channel divider full length Height 390mm standard Base plate Fixes to the desktop, or inverted to a ceiling or wall Finish Pearl white Cabling Suitable for Cat 6 and 6A

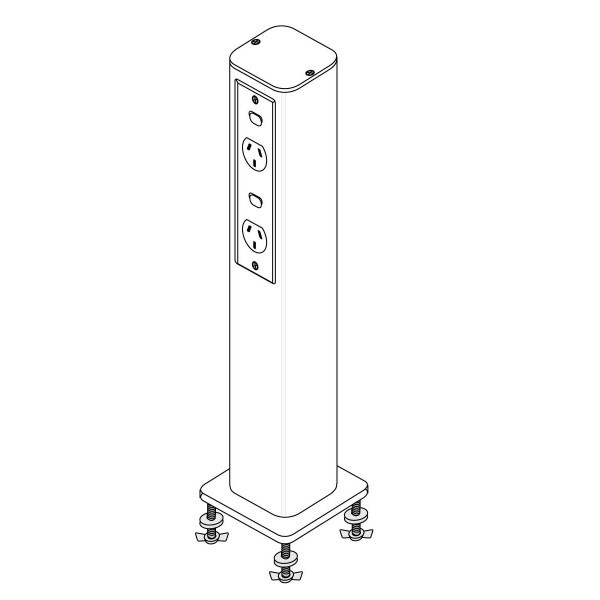

PP70 - SP75 tall service pedestal

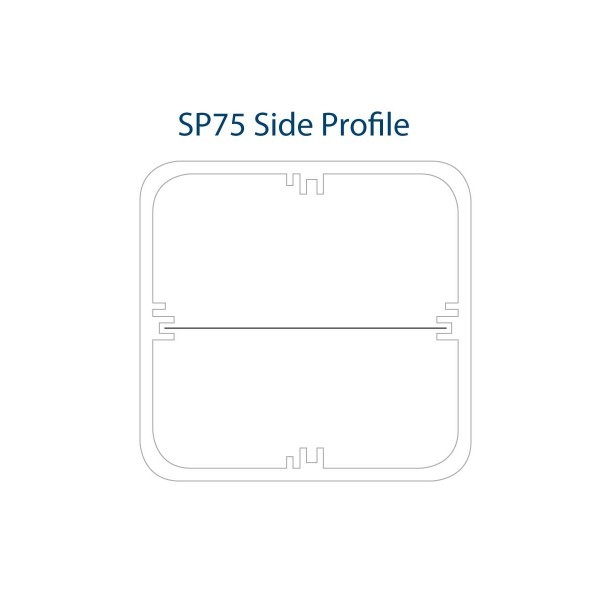

A taller 640mm pedestal on the same 70 x 70mm square body, designed for vertical style power, data and AV outlets mounted in the face of the pedestal. Outlets are not included, so you can choose the outlets to suit your project. Outlets Vertical style power, data or AV (not included) Body 70 x 70mm square aluminium, radiused corners Channels 2, with 70mm channel divider full length Height 640mm standard Top End cap with 2 x painted end cap screws Base plate Fixes flush to the desktop Finish Pearl white Cabling Suitable for Cat 6 and 6A

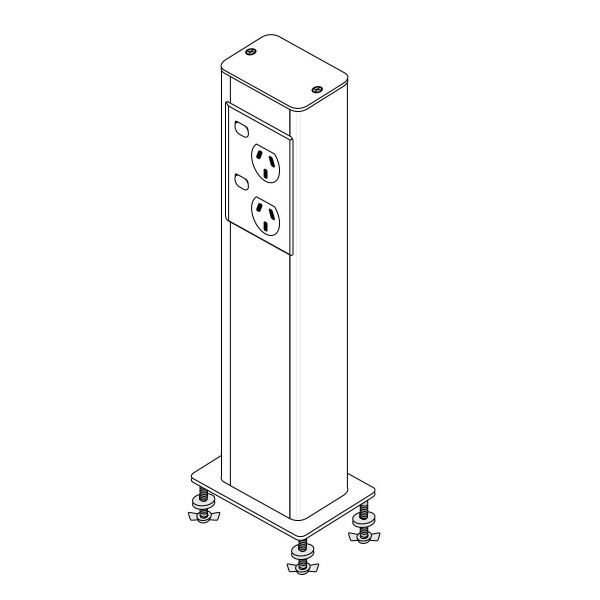

PP85 - SP87 rectangular service pedestal

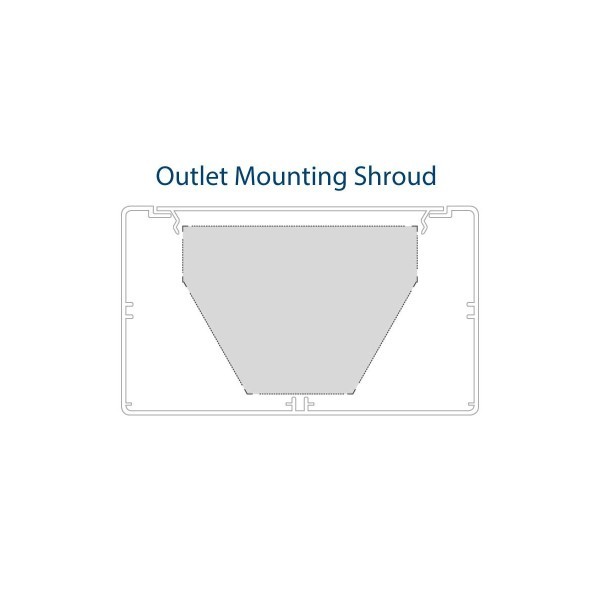

An 85 x 50mm rectangular pedestal with an outlet mounting shroud that takes two Clipsal 2000 series style outlets. Its slimmer profile suits narrow desks, benches and counters, and it is available in natural anodised as well as pearl white. Outlets 2 x Clipsal 2000 series style power, data or AV Body 85 x 50mm rectangular aluminium, radiused corners Channels 2, with 80mm channel divider full length Height 390mm standard Outlet mounting Outlet mounting shroud (SP85OC) Top End cap with 2 x painted end cap screws Finish Pearl white or natural anodised Cabling Suitable for Cat 6 and 6A

Tell us where the pedestals will be fixed and the outlets you need, and we will confirm the right pedestal or a custom build. Email sales@cableduct.com.au or call 1300 302 249.
