FFOB-340S 4 X DGPO Outlet 12 Single Data Outlets

Stainless Steel Flush Floor Box, 4 x Double GPO + 12 x Data

Complete with Stainless Steel Flush Lid, Provision 4 x Double GPO Outlet, and 12 x Data.

FOBSSF6STDO


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

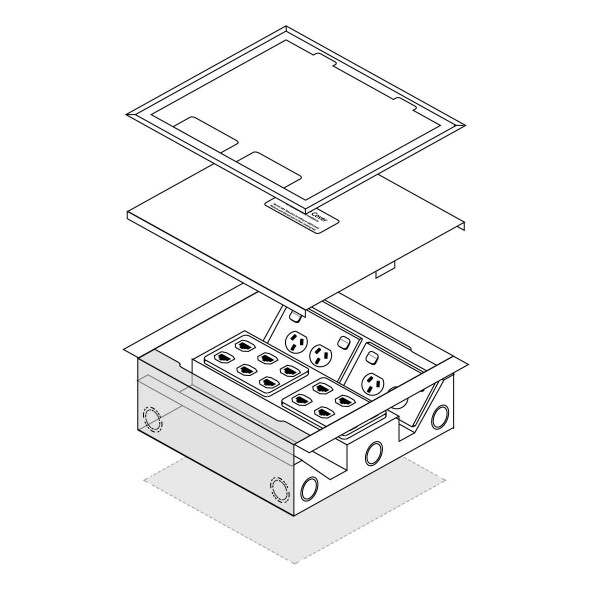

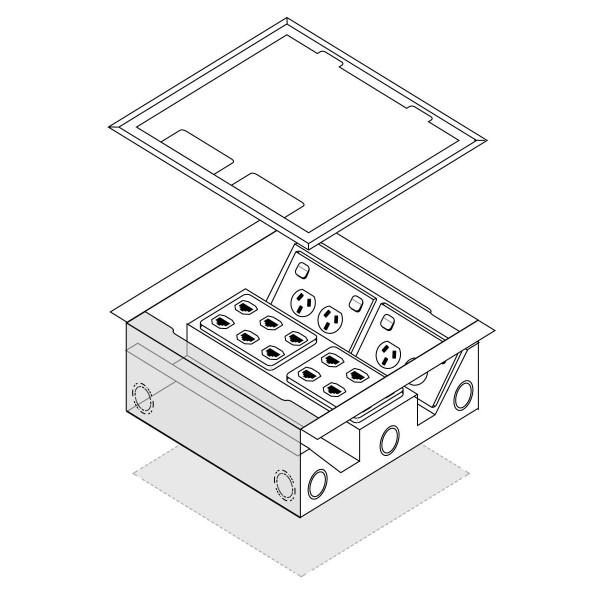

The FOBSSF6STDO flush lid floor box features a hinged Stainless Steel lid, a Steel box body, and an outlet bracket configuration for 4 x Double GPO Outlets plus 12 x Single Data Outlets.

Technical Specifications

Part Number FOBSSF6STDO
Series FOBSSF6STDO Flush Lid Floor Box
Lid Material Stainless Steel, Hinged
Body Material Steel
Outlet Configuration Outlet Bracket to suit 6 x Clipsal 2000 Series Power/Data/AV Outlets (4 x Double GPO + 12 x Single Data)
Conduit Entry 10 x Combination 25/32mm Knockouts

Dimensions

Lid Size
241 x 340 mm
Box Body
322 x 265 x 110 mm
Block-out (Slab)
342 x 285 x 114 mm
Cut-out (Raised Floor)
324 x 267 mm

Key Features

  • Hinged, Stainless Steel lid (241 x 340mm) screw-fixes to the steel box body
  • 2 x cord exit flaps allow cords out with the main cover closed

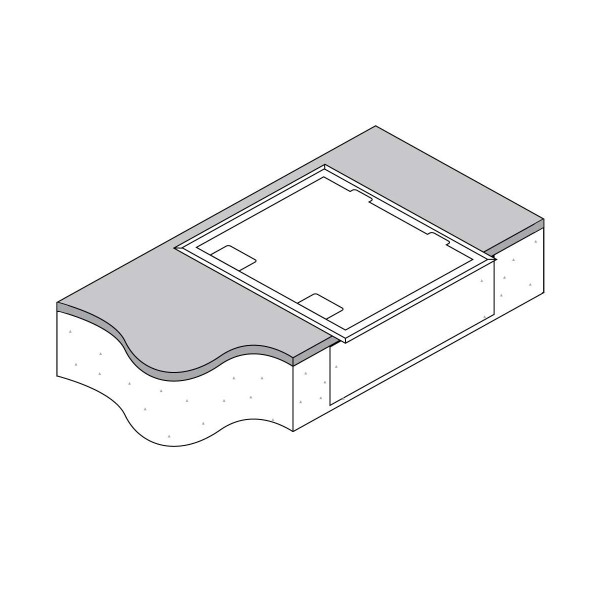

  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 322 x 265 x 110mm nominal depth

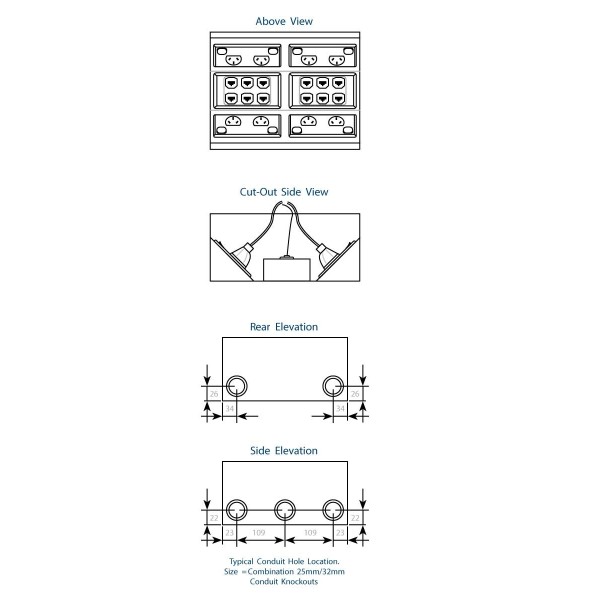

  • 10 x combination 25/32mm conduit knockouts
  • Outlet bracket to suit 6 x Clipsal 2000 Series style Power/Data/AV outlets
  • 4 x Double GPO Outlets (supplied)
  • 12 x Single Data Outlets (supplied)

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSSF6STDO
Series FOBSSF6STDO Flush Lid Floor Box, Stainless Steel, 4 x Double GPO + 12 x Data
Block-out in Concrete Slab 342 x 285 x 114mm nominal
Warranty Manufacturer's warranty

Previously known as FFOB-340S.
