Stainless Tile Recessed Box, 6 x Double GPO | Cableduct

Stainless Steel Tile Recessed Floor Box, 6 x Double GPO

Complete with Stainless Steel 19mm Recessed Lid, Provisions 6 x Standard Outlets.



FOBSS19R6STDO


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

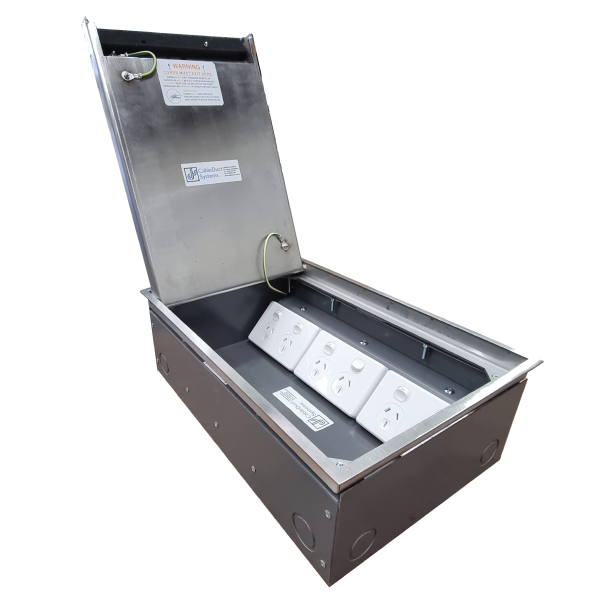

The FOBSS19R6STDO recessed lid floor box features a 19mm 304 Grade Stainless Steel recessed lid, a Colorbond® Steel box body, and capacity for 6 x Standard Outlets (power or data, not supplied).

Technical Specifications

Part Number FOBSS19R6STDO
Series FOBSS19R6STDO Recessed Lid Floor Box
Lid Material 304 Grade Stainless Steel, 19mm Recessed
Body Material Colorbond® Steel
Outlet Configuration 6 x Standard Outlets (Power or Data, not supplied)
Conduit Entry 14 x 25/32mm Knockouts
Weight 1.6 kg (approx.)

Dimensions

Lid Size
388 x 264 x 25 mm
Box Body
380 x 250 x 105 mm
Block-out (Slab)
400 x 270 x 115 mm

Key Features

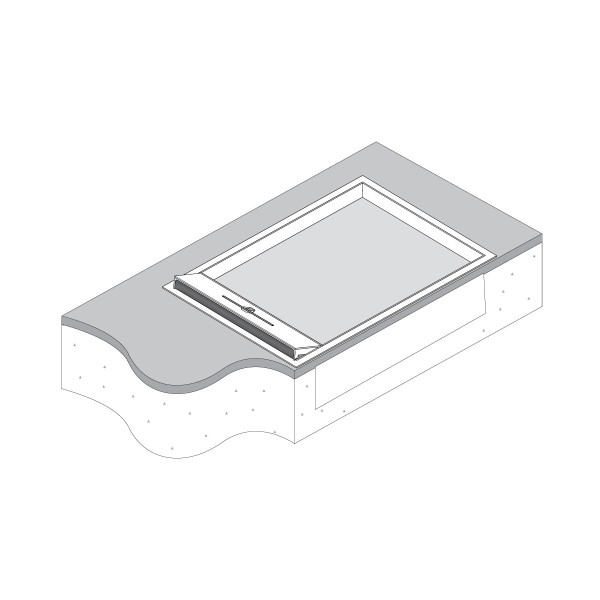

  • 304 Grade Stainless Steel lid and frame (388 x 264 x 25mm) with 19mm flooring rebate sits flush with the floor finish

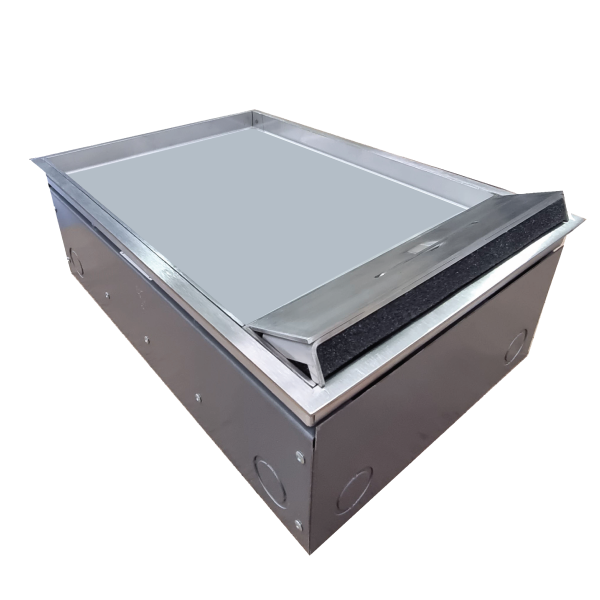

  • Cord exit flap with foam dust guard and recessed handle allows cords out with the main cover closed

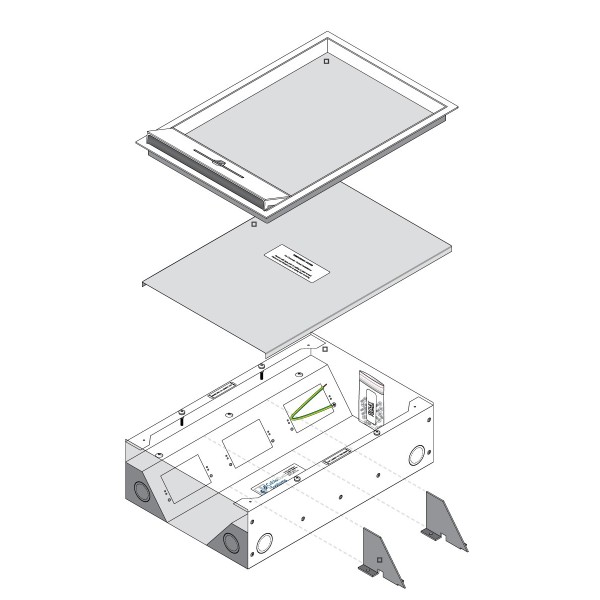

  • Galvanised Steel temporary cover tapes in place during the concrete pour to prevent ingress of slurry
  • Colorbond® Steel box body, 380 x 250 x 105mm nominal, with 4 x M5 lid levelling adjustment screws

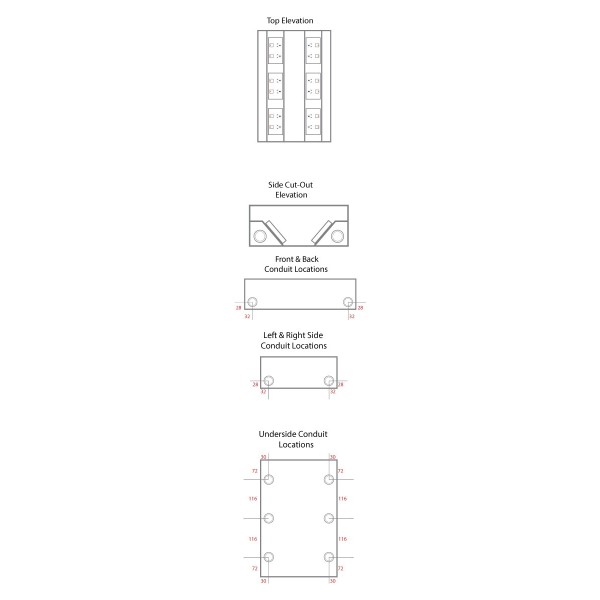

  • 14 x 25/32mm conduit knockouts
  • Capacity for 6 x Standard Outlets, power or data (not supplied); power/data divider available separately
  • Includes M4 earth lead and outlet fixing hardware

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSS19R6STDO
Series FOBSS19R6STDO Recessed Lid Floor Box, Stainless Steel, 6 x Standard Outlets
Block-out in Concrete Slab 400 x 270 x 115mm nominal
Warranty Manufacturer's warranty

Previously known as FFOB-430SS.
