Stainless Tile Recessed Box, 8 x GPO + 8 Data | Cableduct

Stainless Steel Tile Recessed Floor Box, 8 x Auto-Switched GPO + 8 x Data

Complete with Stainless Steel 19mm Recessed Lid, 8 x Auto Switched Outlets, and provisions for 8 Data



FOBSS19R8P8DS80


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The FOBSS19R8P8DS80 recessed lid floor box features a 19mm 304 Grade Stainless Steel recessed lid, a Colorbond® Steel box body, and capacity for 8 x Auto Switched Outlets plus provisions for 8 x Data (not supplied).

Technical Specifications

Part Number FOBSS19R8P8DS80
Series FOBSS19R8P8DS80 Recessed Lid Floor Box
Lid Material 304 Grade Stainless Steel, 19mm Recessed
Body Material Colorbond® Steel
Outlet Configuration 8 x Auto Switched Outlets (Power) + Provisions for 8 x Data (not supplied)
Conduit Entry 14 x 25/32mm Knockouts
Weight 1.6 kg (approx.)

Dimensions

Lid Size
388 x 264 x 25 mm
Box Body
380 x 250 x 105 mm
Block-out (Slab)
400 x 270 x 115 mm

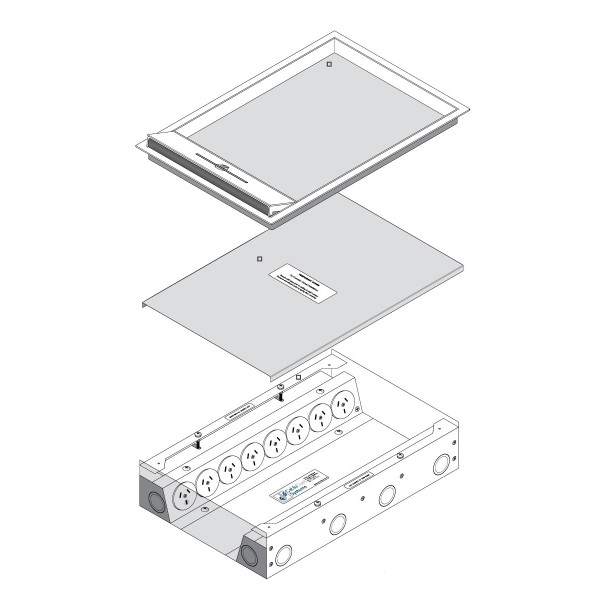

Key Features

  • 304 Grade Stainless Steel lid and frame (388 x 264 x 25mm) with 19mm flooring rebate sits flush with the floor finish
  • Cord exit flap with foam dust guard and recessed handle; 4 x M3 lid-to-body fixings
  • Galvanised Steel temporary cover (378 x 252 x 10mm) tapes in place during the concrete pour to prevent ingress of slurry
  • Colorbond® Steel box body, 380 x 250 x 105mm nominal, with 4 x M5 lid levelling adjustment screws

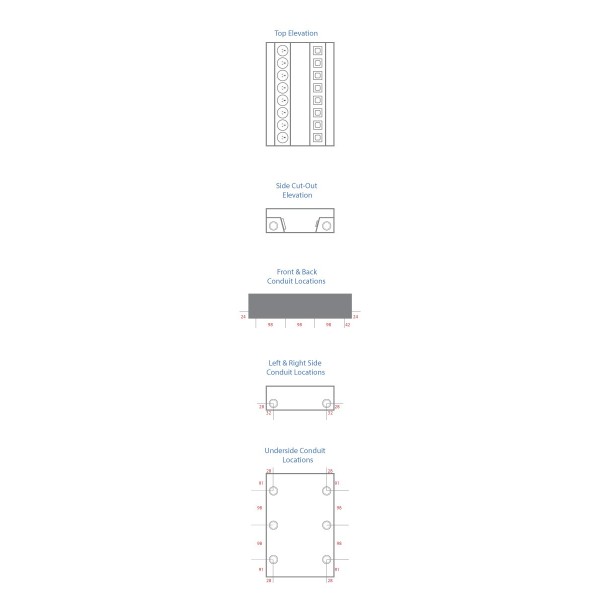

  • 14 x 25/32mm conduit knockouts
  • Capacity for 8 x Auto Switched Outlets (power) plus provisions for 8 x Data outlets (not supplied); power/data divider available separately
  • Includes M4 earth lead and outlet fixing hardware

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSS19R8P8DS80
Series FOBSS19R8P8DS80 Recessed Lid Floor Box, Stainless Steel, 8 x Auto Switched Outlets + 8 x Data

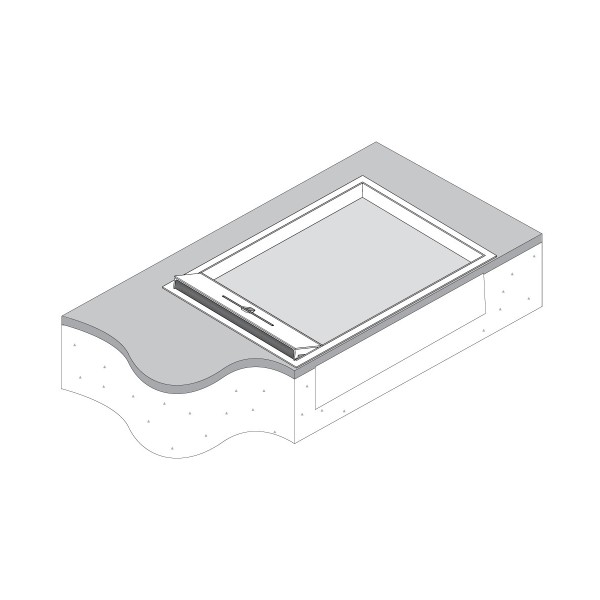

Block-out in Concrete Slab 400 x 270 x 115mm nominal
Warranty Manufacturer's warranty

Previously known as FFOB-430/80-SS.
