FOBSS19F2P3DS70 2 X 10amp Auto Switched Outlets and 3 x Single Data

FOBSS19F2P3DS70 2 X 10amp Auto Switched Outlets and 3 x Single Data

Complete with stainless steel 19mm flush lid, 2 x auto-switched outlets, and provisions for 3 x data.

FOBSS19F2P3D


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The FFOB-285S/70 flush lid floor box features a hinged 19mm Stainless Steel lid, a Steel box body, and 2 x 10Amp Round GPOs plus 3 x Single Data Outlet Clips for power and data connectivity.

Technical Specifications

Part Number FOBSS19F2P3D
Series FFOB-285S/70 Flush Lid Floor Box
Lid Material Stainless Steel, Hinged, 19mm Flush
Body Material Steel
Outlet Configuration 2 x 10Amp Round GPOs + 3 x Single Data Outlet Clips

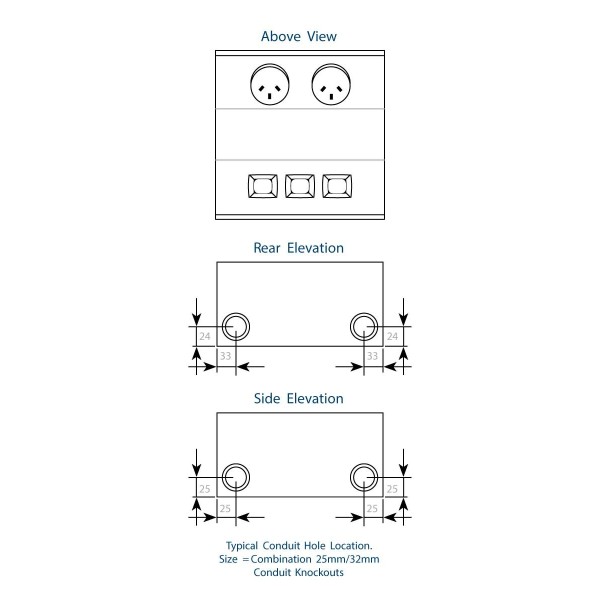

Conduit Entry 12 x Combination 25/32mm Knockouts (8 side, 4 base)
Weight 5.0 kg (approx.)

Dimensions

Lid Size
175 x 285 mm
Box Body
157 x 260 x 67 mm

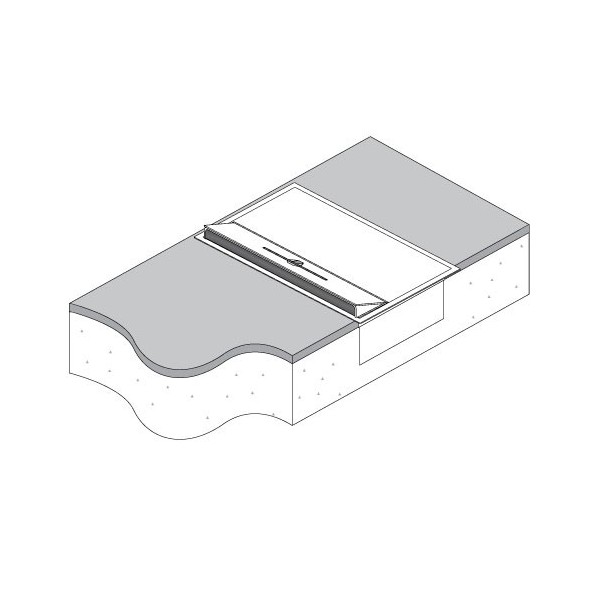

Block-out (Slab)
170 x 285 x 92 mm
Cut-out (Raised Floor)
165 x 275 mm

Key Features

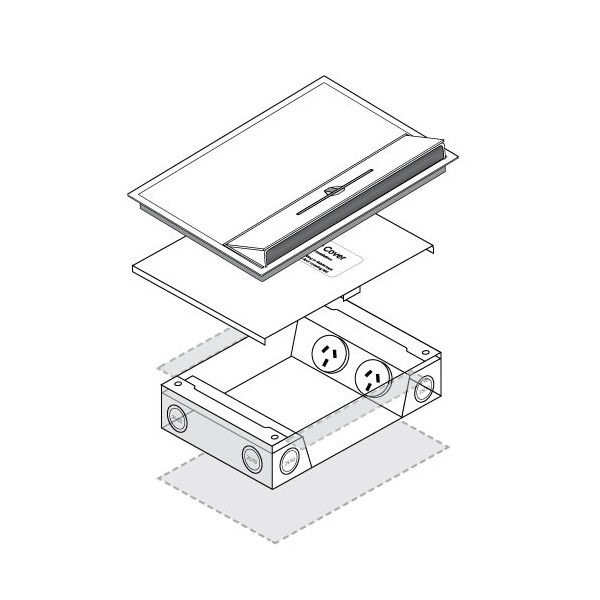

  • Hinged, 19mm Stainless Steel lid (175 x 285mm) screw-fixes to the steel box body
  • 1 x cord exit flap allows cords out with the main cover closed
  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 157 x 260 x 67mm nominal depth
  • 12 x combination 25/32mm conduit knockouts (8 side, 4 base)
  • 2 x 10Amp Round GPOs (supplied)
  • 3 x Single Data Outlet Clips (supplied)
  • Floating Floor brackets are available upon request

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSS19F2P3D
Series FFOB-285S/70 Flush Lid Floor Box, Stainless Steel 19mm, 2 x GPO + 3 x Data
Block-out in Concrete Slab 170 x 285 x 92mm nominal
Warranty Manufacturer's warranty
