FFOB-250/8P8D STAINLESS STEEL RECESSED LID 8 POWER 8 DATA

Stainless Steel Recessed Floor Box, 8 x Auto-Switched GPO + 8 x Data

Complete with Stainless Steel Recessed Lid, 8 x Auto Switched Outlets and 8 x Data Provisions.

FOBSSR8P8D


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

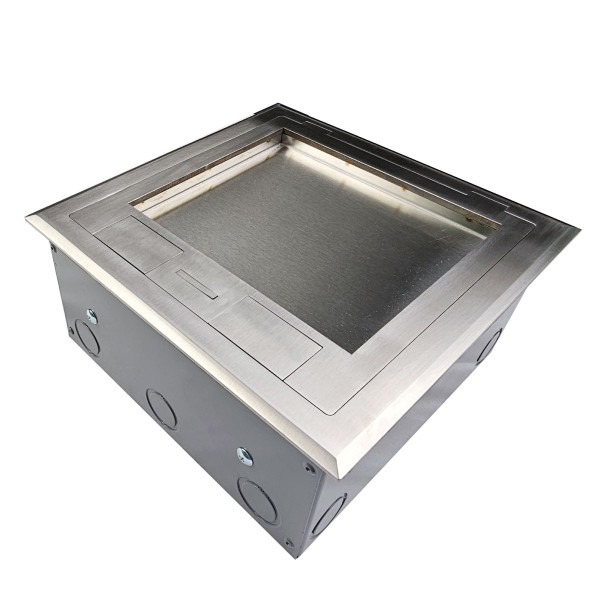

The FOBSSR8P8D recessed lid floor box features a hinged Stainless Steel recessed lid, a Steel box body, and 8 x 10Amp Round Auto Switched GPOs plus 8 x Single Data Outlet Clips for power and data connectivity.

Technical Specifications

Part Number FOBSSR8P8D
Series FOBSSR8P8D Recessed Lid Floor Box
Lid Material Stainless Steel, Hinged, Recessed
Body Material Steel
Outlet Configuration 8 x 10Amp Round Auto Switched GPOs + 8 x Single Data Outlet Clips
Conduit Entry 13 x Combination 25/32mm Knockouts (10 side, 3 base)
Weight 5.0 kg (approx.)

Dimensions

Lid Size
245 x 245 mm
Box Body
228 x 227 x 110 mm

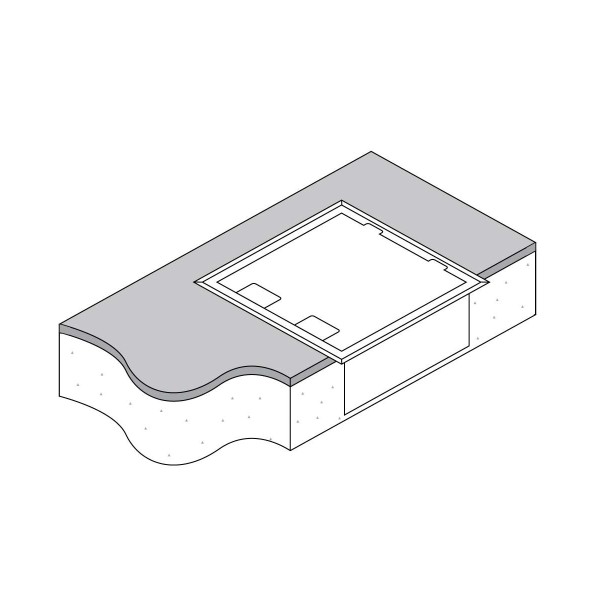

Block-out (Slab)
248 x 247 x 120 mm
Cut-out (Raised Floor)
230 x 229 mm

Key Features

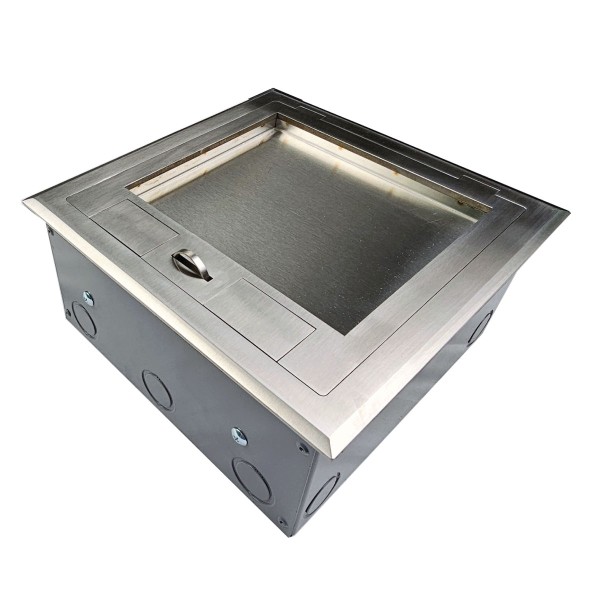

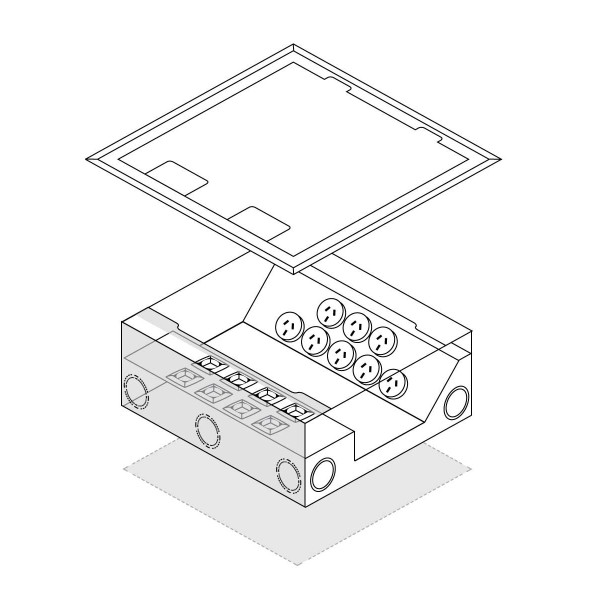

  • Hinged, Stainless Steel recessed lid (245 x 245mm) screw-fixes to the steel box body

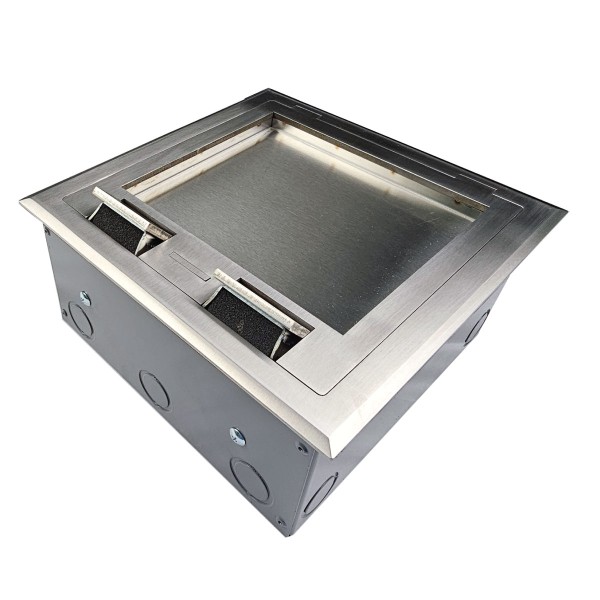

  • 2 x cord exit flaps allow cords out with the main cover closed

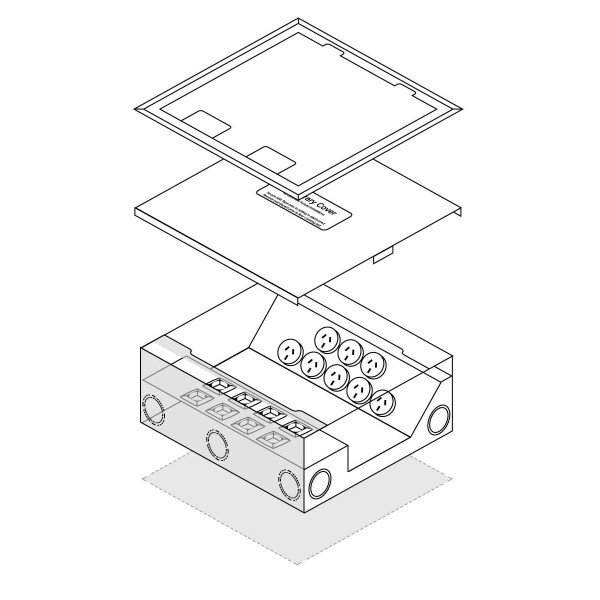

  • Temporary cover secures to the body during the concrete pour to prevent ingress of slurry
  • Steel box body, 228 x 227 x 110mm nominal depth

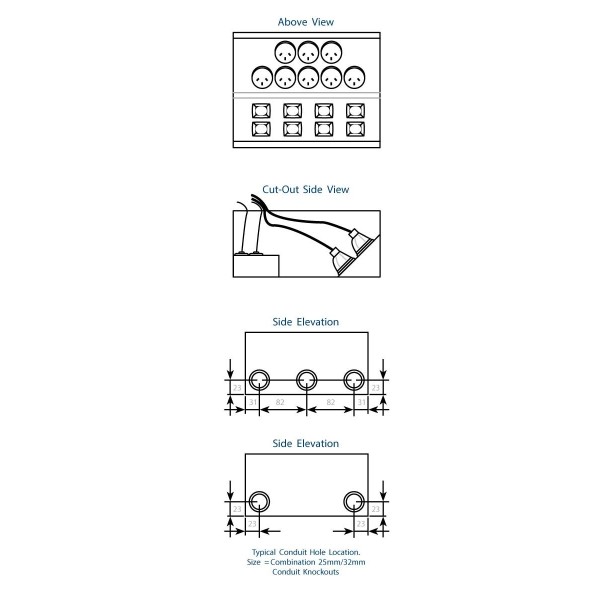

  • 13 x combination 25/32mm conduit knockouts (10 on the outside of the box, 3 on the base)

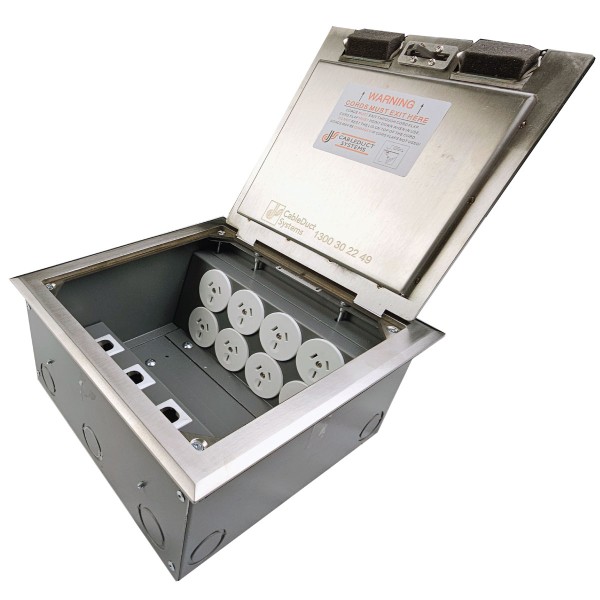

  • 8 x 10Amp Round Auto Switched GPOs (supplied)
  • 8 x Single Data Outlet Clips (supplied)

Typical Applications

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

Ordering Information

Part Number FOBSSR8P8D
Series FOBSSR8P8D Recessed Lid Floor Box, Stainless Steel, 8 x Auto Switched GPO + 8 x Data
Block-out in Concrete Slab 248 x 247 x 120mm nominal
Warranty Manufacturer's warranty

Previously known as FFOB-250/8P8D.

FOBSSR8P8D
