Unex Cable Tray 66 Accessories
Everything needed to complete a Unex 66 insulating cable tray run: junctions and hinges, flat corners and covers, end and joint covers, IK10 cover fixings, base reinforcing plates, wall supports and insulating strut channel. Grey RAL 7035.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
The Unex 66 accessory range lets you turn corners, change level, close off ends and fix Unex U23X insulating cable tray to walls and structures without cutting or fabricating on site. Every part is moulded in the same grey RAL 7035 insulating material as the tray, so the finished run is non-corroding, needs no earthing and stays consistent from end to end.
Choose the parts below to match your tray width. All parts suit the Unex 66 tray (60mm and 100mm deep) supplied by Cableduct.
Colour reference
| Grey RAL 7035 |
Colours are a guide only and will vary with screen settings.
At a glance
| Item | Part numbers | Sizes | Material |
|---|---|---|---|
| Junctions & hinge connectors | 66824, 66841, 66844, 66813, 66842, 66843 | 6 types | U23X PVC |
| Flat corner 90° | 66060 to 66410 | 75 to 400mm | U23X PVC |
| Flat corner cover | 66061 to 66411 | 75 to 400mm | U23X PVC |
| End cover | 66093 to 66413 | 75 to 400mm | U23X PVC |
| Joint cover | 66094 to 66414 | 75 to 400mm | U23X PVC |
| Cover fixing IK10 | 66845 | All widths | U23X PVC |
| Base reinforcing plate | 66820, 66830 | 300/400 and 500/600mm | U23X PVC |
| Vertical support | 66075 to 66605 | 75 to 600mm | Halogen-free PVC |
| Horizontal support | 60103-44 to 60603-44 | 75/100 to 600mm | U48X halogen free |
| Insulating strut channel | 60202-44, 60204-44 | 25x50 and 50x50mm, 2m | U48X halogen free |
Junctions & hinge connectors
 |
Direction-change connectors for every transition in a tray run: straight joints, corners, horizontal and vertical hinges, and up or down level changes. No cutting of the tray is needed.
|
Flat corner 90°
 |
Preformed flat 90-degree section for clean horizontal direction changes without on-site fabrication.
|

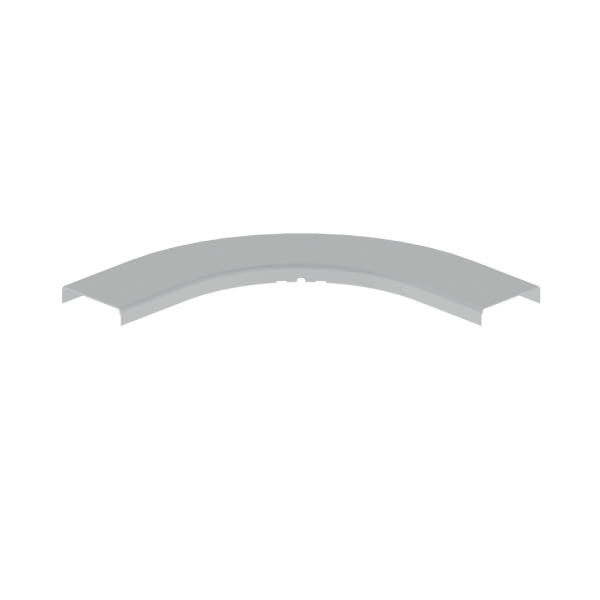

Flat corner cover
 |
Snaps over the flat corner section to complete the enclosure at the change of direction, with no fasteners.
|

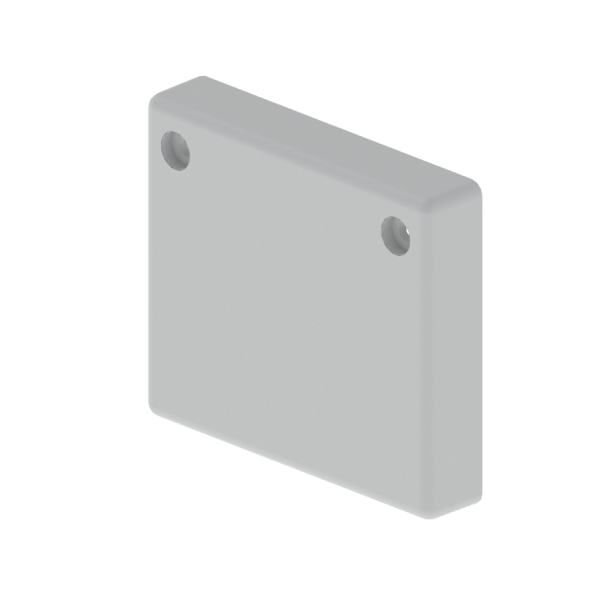

End cover
 |
Closes off the open end of a tray run for a clean, safe finish.
|

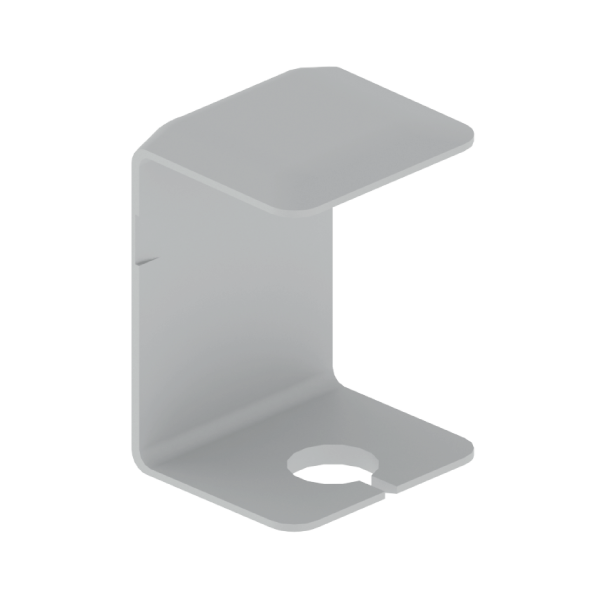

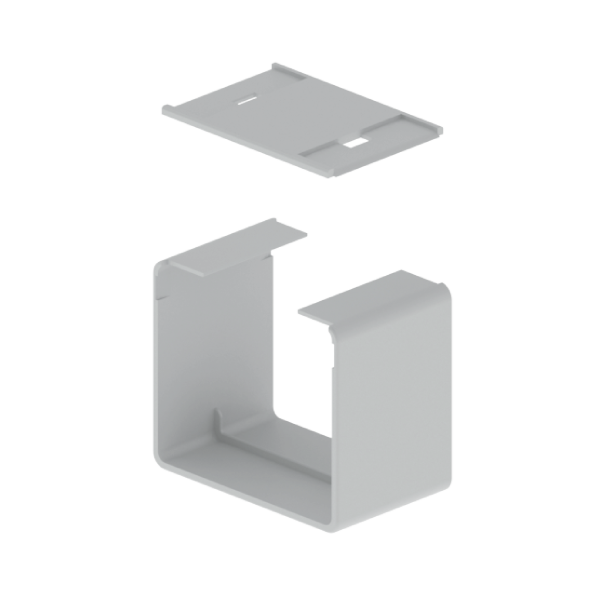

Joint cover
 |
Covers straight-run joints along the top of the tray for a continuous finish.
|
Cover fixing IK10
 |
Impact-rated clip that locks the tray cover in place in high-traffic or vandal-prone areas.
|

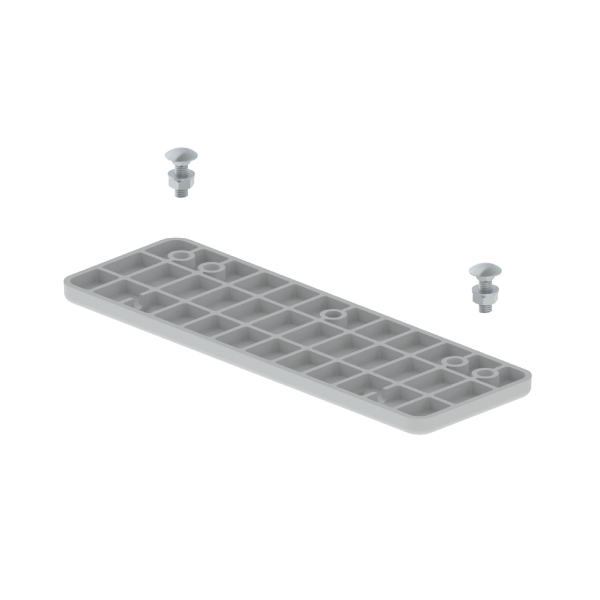

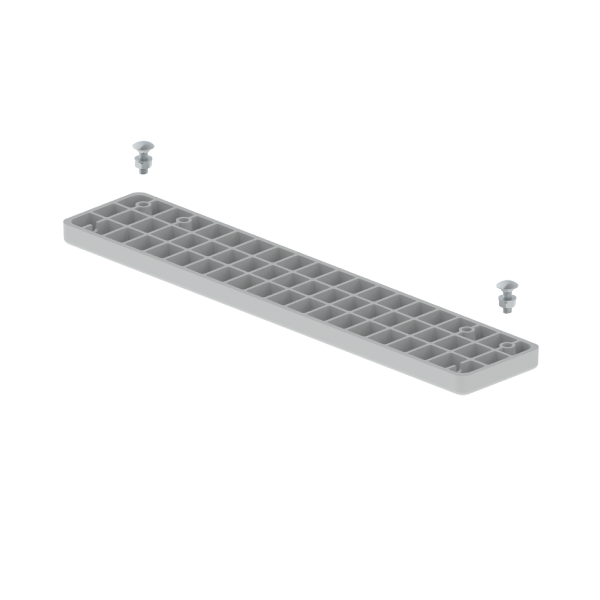

Base reinforcing plates
  |
Fits under the base of wide trays to limit cable sag and add rigidity, helping the installation comply with EN 61537. Supplied with 2 mounting screws.
|
Vertical support
 |
Halogen-free PVC bracket for mounting tray 66 vertically on walls and structures. Corrosion and chemical resistant.
|

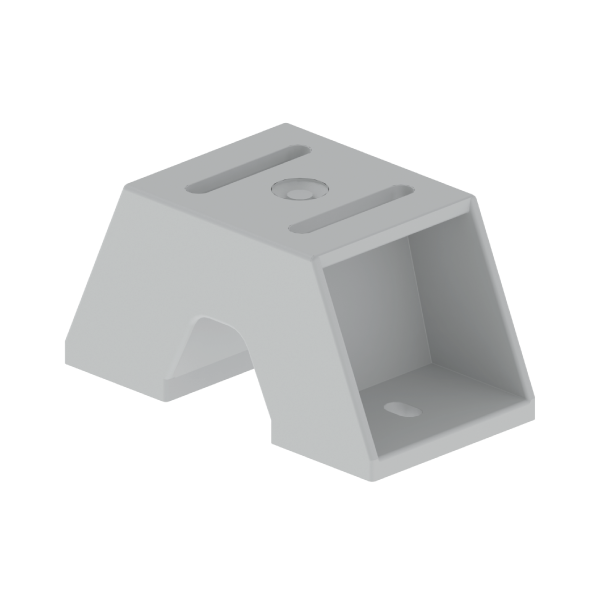

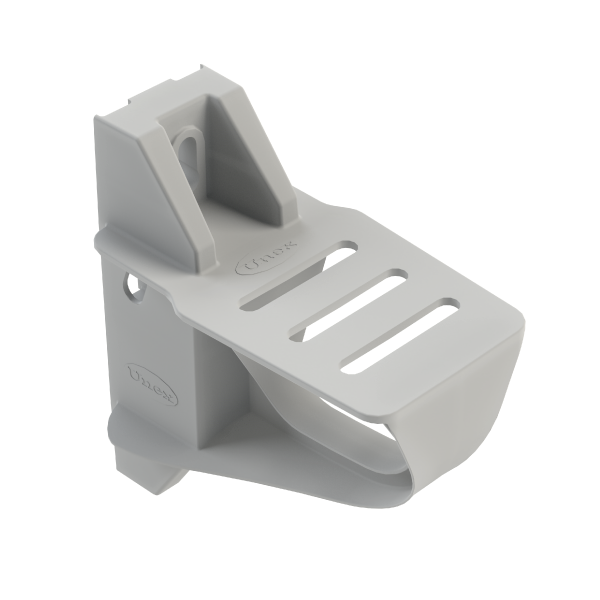

Horizontal support
 |
Halogen-free insulating wall or structure bracket that carries the tray horizontally and electrically isolates it from the mounting surface.
|

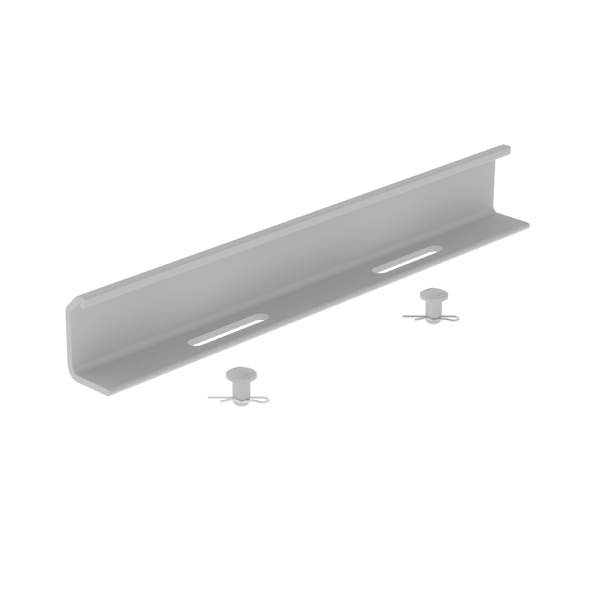

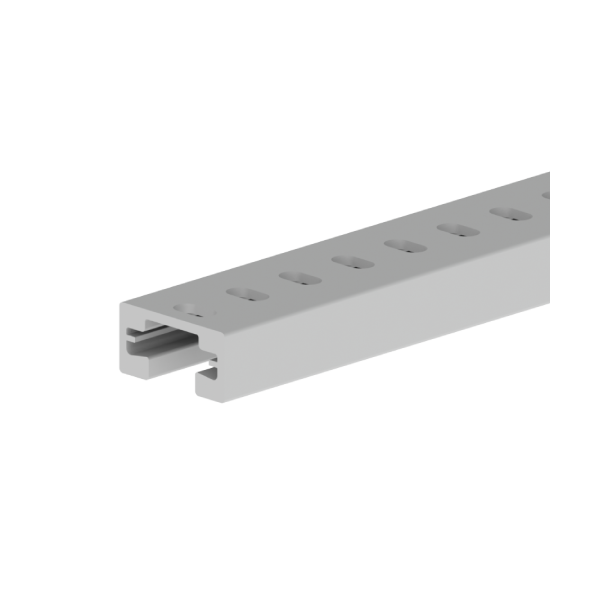

Insulating strut channel
 |
Heavy-duty halogen-free channel for mounting brackets, supports and fixings. Supplied in 2m lengths.
|
All Unex 66 accessories are available to order. Contact Cableduct for pricing, stock and help selecting the right parts for your tray run. Email sales@cableduct.com.au or call 1300 302 249.
